The Schiller Max Stocker opens fully new dimensions in particle-reduced warehouse storage in the cleanroom. The double-sided, double-depth storage of FOUP/FOSB or OC containers enables stockers featuring capacities in excess of 1,200 storage spaces to be implemented.

Boxes are stored according to cleanroom class ISO-5.

Along the X-axis of the Stocker, two rack control devices may be operated simultaneously and accessed via displacement movements redundantly at docking stations, rotary gates, sorters, shuttles, or OHT connections.

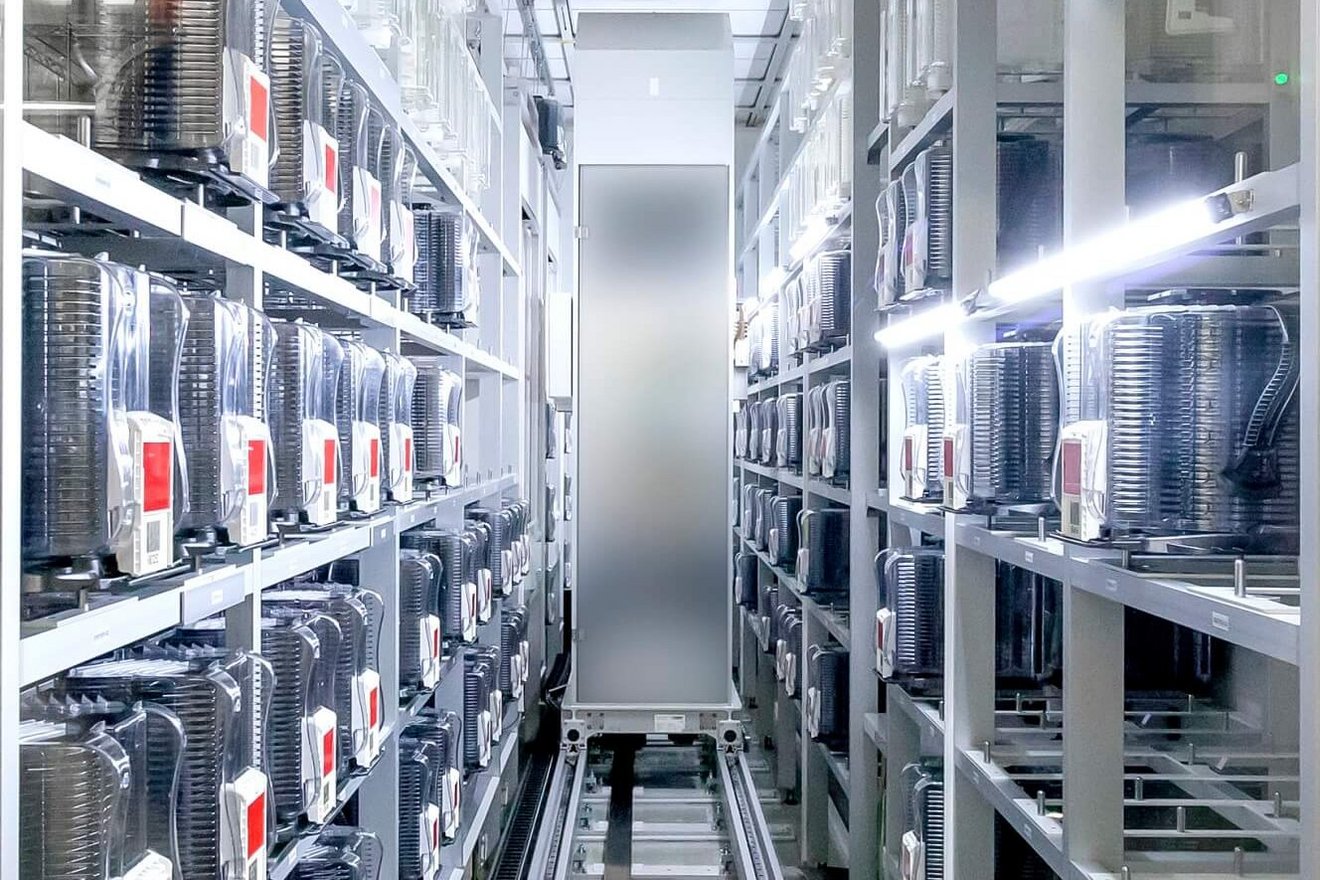

Max Stocker front view

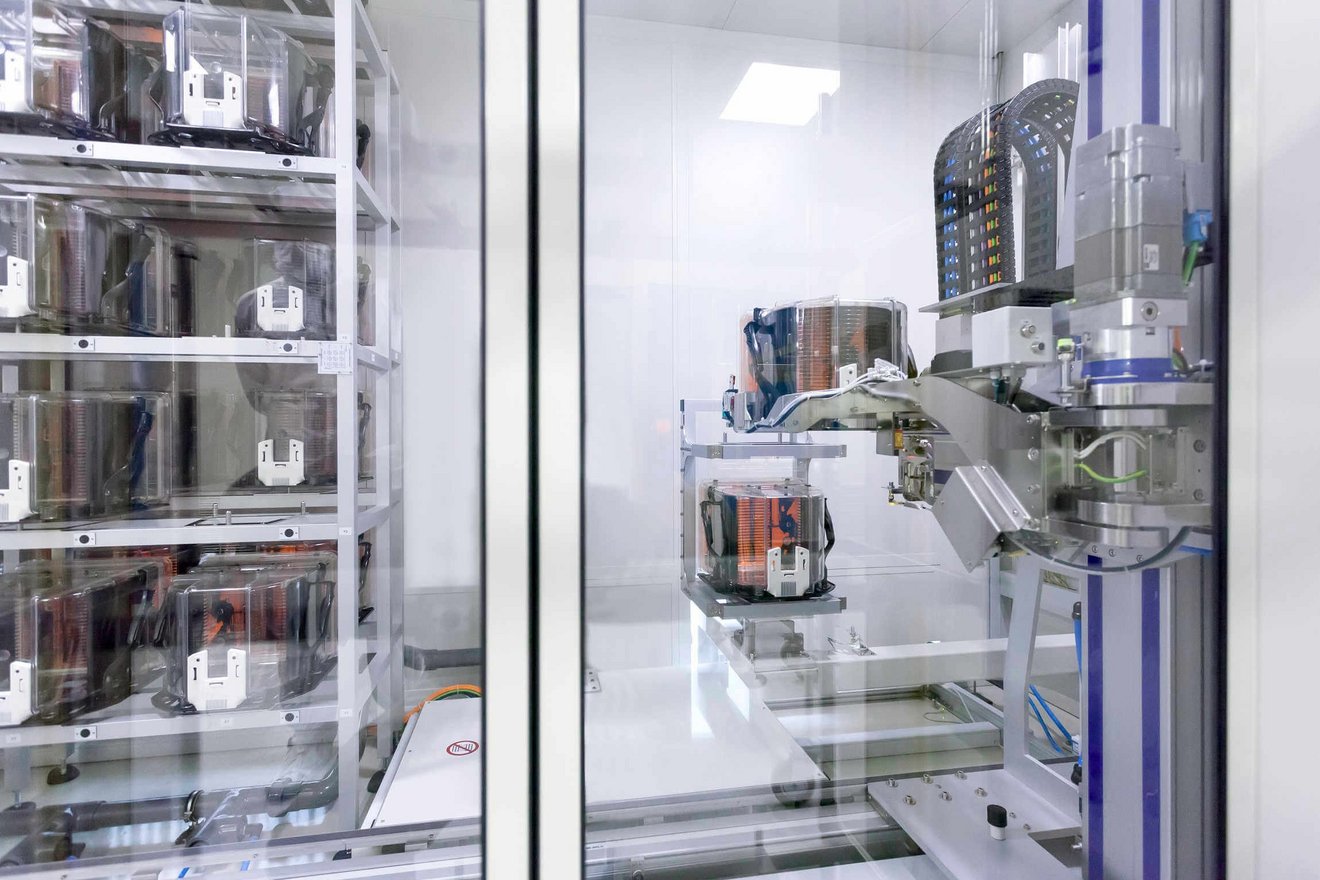

Max Stocker transfer process

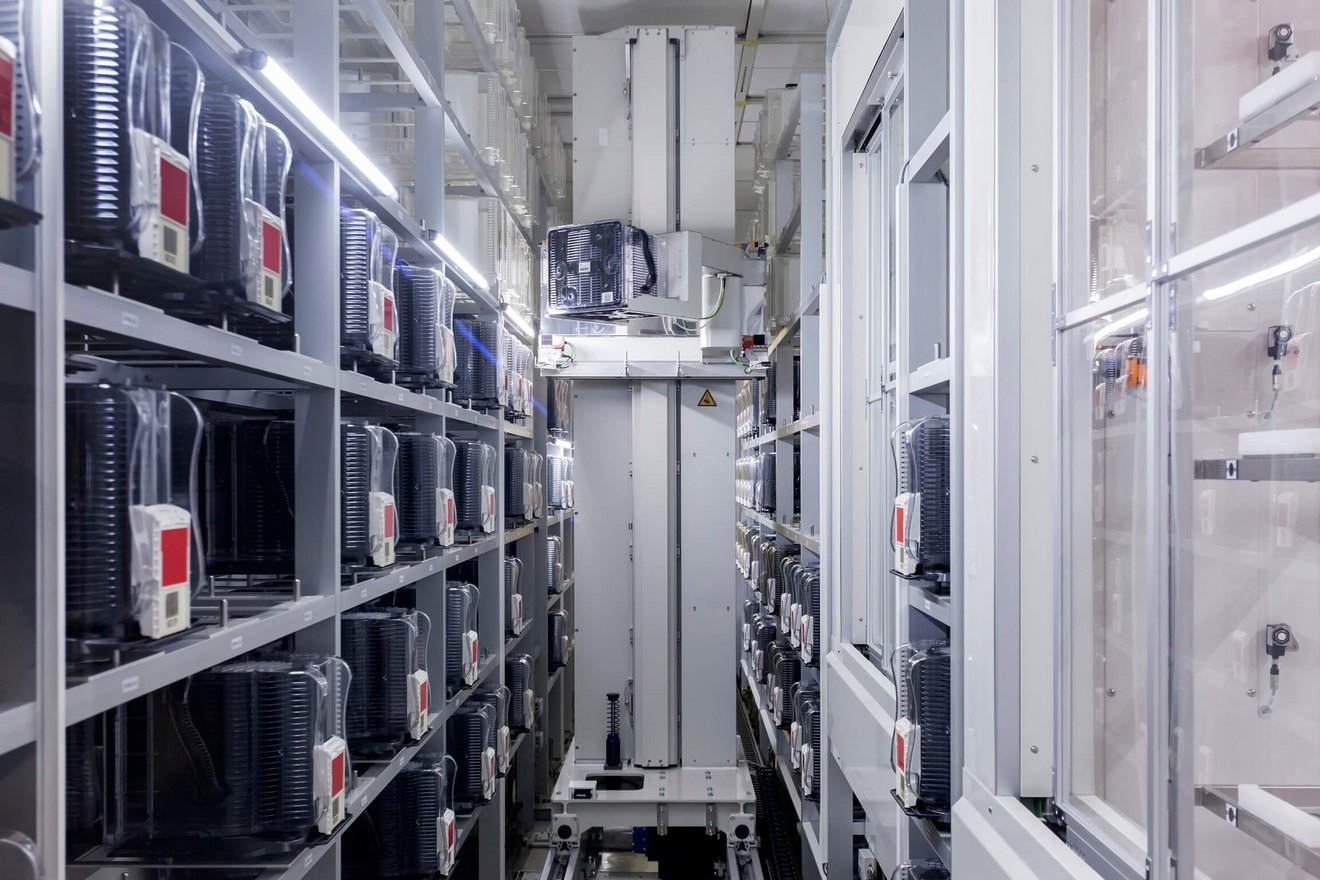

Max Stocker rear view

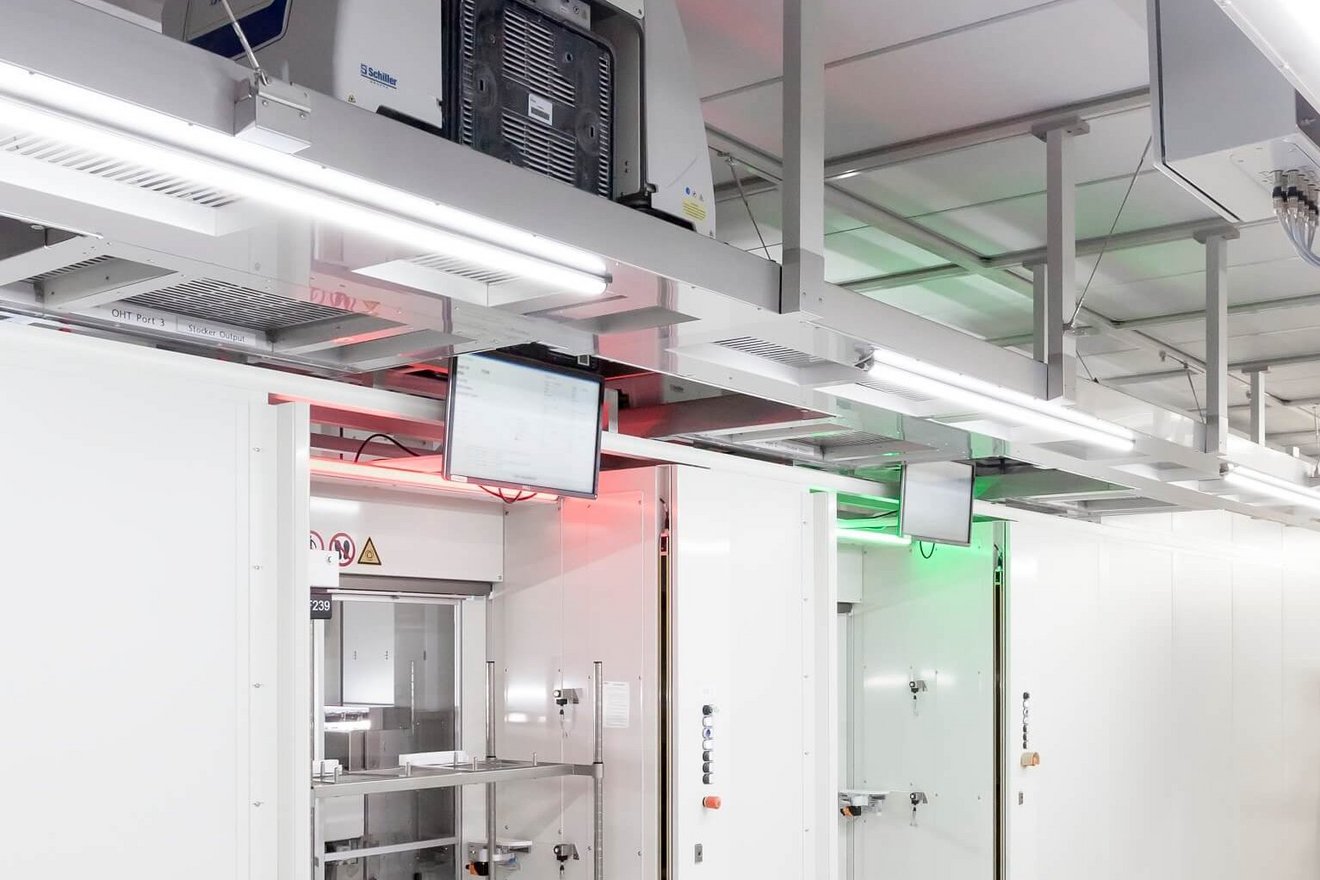

Combination Stocker & HTW docking station & shuttle

Features

  • Storage of different transport containers (FOUP, FOSB)
  • Fulfils ISO class 5 cleanroom class
  • IO-ports:
    • Manual I/O ports (rotary gate)
    • Automatic I/O ports (OHT connection)
    • Connection to equipment possible
    • Dockingstation for transport trolley / cart
  • SEMI-E88 MCS interface
  • SEMI-E84 transfer interface

Technical data

  • Medium cycle time: 20 - 25 sec.
  • Dimensions:
    • Height: 6,1 m
    • Width: 2,75 m
    • Length: Max 47 m
  • SIEMENS S7 PLC

Datasheet

pdf

Schiller SCI Datasheet Max Stocker

Software

Max-Stocker-Software
  • Remote access: Web front-end including user administration
  • Data tracking: Material tracking, system counter visualisation
  • SECS interface: SEMI E88-conformant interface, expandable upon request by the customer
  • Interfaces:
    • Web frontend via http Port 80
    • SECS/GEM Ethernet interface
    • Ethernet interface to the PLC systems
Special features
  • Inventory function
  • Optional 3D inventory visualisation
